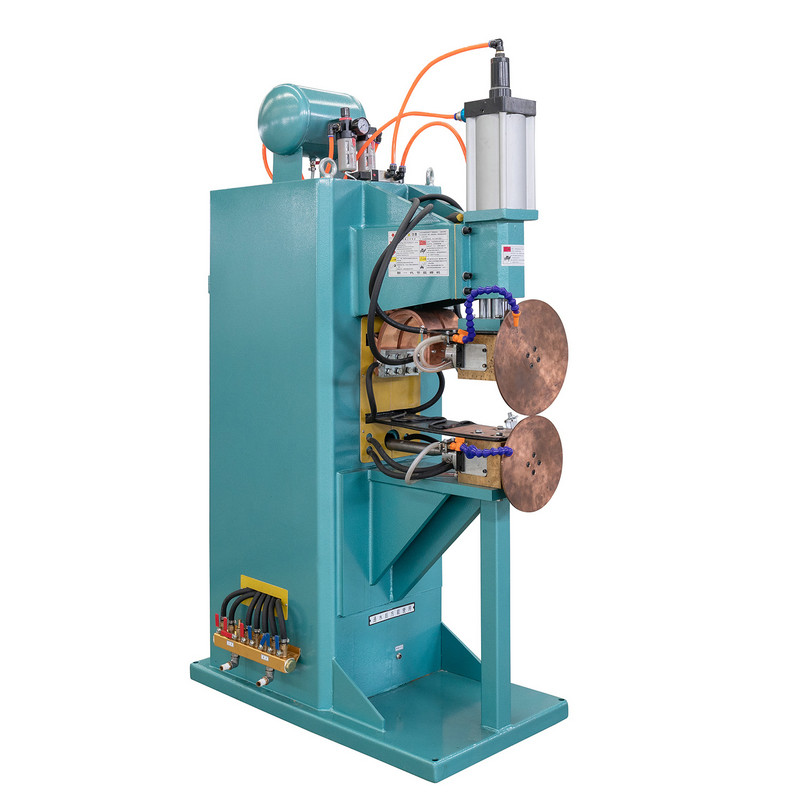

In domo / Apparatu / FN Seam Welding Machina / FN-C circumferential roam Welding pneumatic ramus welder
FN-C circumfusilibus roam welding pneumaticae roam welders invenire extensive application in producendo articulis, quod necessitate says et aeque efficax ad welding vexillum sheet metallum components quod non requirit signantes. De more, haec machinis sunt usus ad Weld metallum materiae vndique in crassitudine a 0,1mm ad 2.5mm. Commodo et stabilitatem in adjusting welding celeritatum sunt, ut per usu trium-tempus initus celeritate regula coegi per welding processus. Ad accommodare Welding de diversis buxum informibus workpieces, et Welding apparatus offert flexibilitate in operationem, permittens ad utrumque vertical et horizontalis Welding configurations.
Specificationes
| Exemplar | Unitas | FN-100kW | |
| Input voltage / frequency | V / HZ | 380V / 50Hz | |
| Rated capacity | Kva | 100 | |
| Secundarium voltage | V | 7.6 | |
| Rated onus Duration | % | 50 | |
| Maximum brevi circuitu current | KV | 26 | |
| Extensio longitudo electrode brachium | mm | 400 | |
| Electrode opus ictu | mm | 80 | |
| Rated Electrode pressura | N | 7300 | |
| Gas pressura | MPA | 0.6 | |
| Maximum Welding capacitatem | Minimum Carbon Steel | mm | 1.5 1.5 |
| Refrigerant aqua fluxus | L / min | 25 | |
| Refrigerationem aqua pressura | MPA | 0.15-0.3 | |
